Name: BMC Teammachine R 01 ROAD BIKE CARBON BLACK / COOL WHITE
SKU: 465123

Call-in to ask for special seasonal promotions*

Inquire now for more sizes and different specs!

Teammachine R 01 Premium Carbon Module

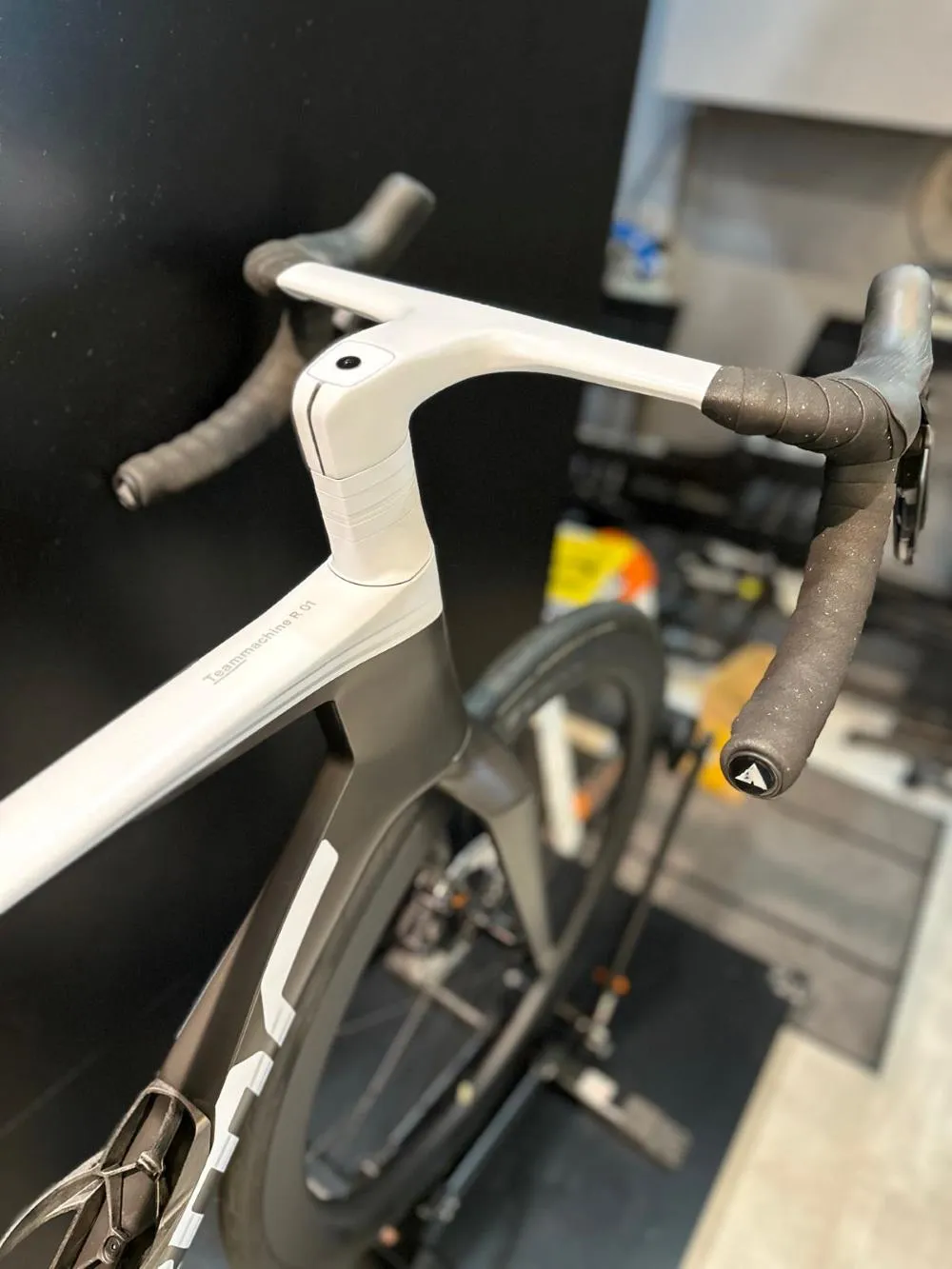

ICS Carbon Aero Cockpit

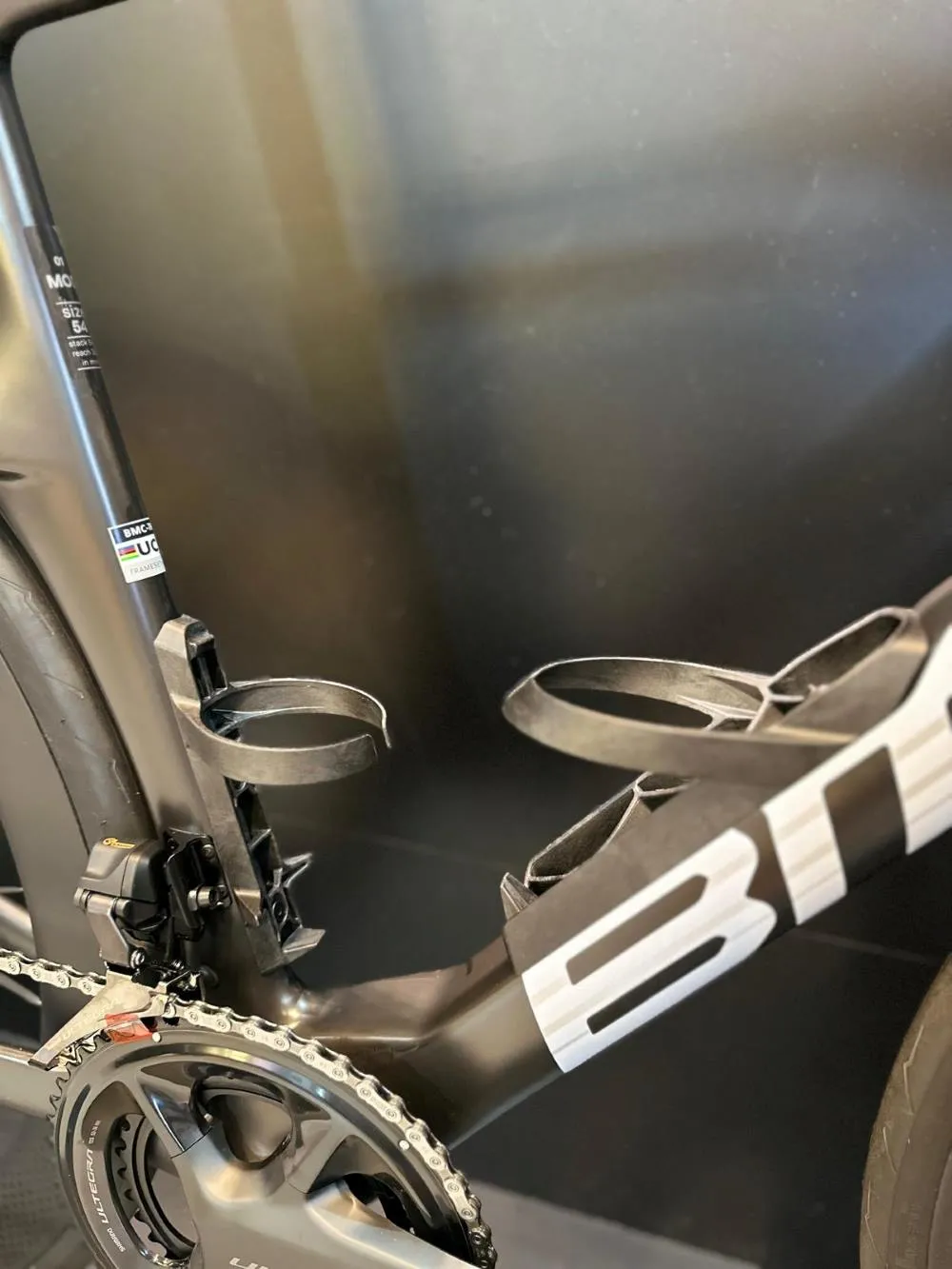

Integrated Aerocore Bottle Cages

The all-new BMC Teammachine R was designed for a special breed of cyclist. Light enough to ascend the most demanding climbs and stiff enough to endure the most watt-crushing sprints, the Teammachine R is the ultimate race bike. The Teammachine R 01 MOD comes with BMC’s ICS Carbon Aero Cockpit and the integrated Aerocore bottle cages.

Innovation

Technical Overview

Full Specification

Frame
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle
Fork
Teammachine R 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle
Handlebar
ICS Carbon Aero | One-Piece Full Carbon Cockpit
Seatpost
Teammachine R 01 Premium Carbon Seatpostn10mm Offset
Tire Clearance
30mm (Measured Width)
Extras
Aerocore Bottle Cages
Weight Limit
110 Kg
ASTM Classification
Level 1

Geometry

Size	47	51	54	56	58	61
Rider Height CM	<166	166-174	172-180	178-186	184-192	>190
Stack MM	504	528	548	563	582	608
Reach MM (reach)	368	378	387	393	402	409
Seat Tube MM (st)	418	463	499	519	541	570
Top Tube MM (tt)	522	532	552	562	582	598
Head Tube MM (ht)	108	133	149	165	185	211
Seat Tube Angle (sa)	74	74	73.5	73.5	73	73
Head Angle (ha)	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center MM (rc)	410	410	410	410	410	410
Front Center MM (fc)	568	586	589	599	614	630
Wheelbase MM (wb)	968	986	989	999	1015	1030
BB Drop MM (drop)	69	69	69	69	69	69
Fork Length MM (fl)	367	367	367	367	367	367
Fork Rake MM (fr)	48	48	43	43	43	43
Trail MM (trail)	63	63	63	63	63	63
Crank Length MM	170	170	172.5	172.5	175	175
Stem Length MM	90	100	100	110	110	120
Stem Angle	-15	-15	-15	-15	-15	-15
Bar Width MM	360/420	360/420	360/420	360/420	360/420	360/420
Bar Drop MM	135	135	135	135	135	135
Bar Reach MM	72.5	72.5	72.5	72.5	72.5	72.5
Post Offset MM	10	10	10	10	10	10
Seatpost Length MM	335	335	385	385	405	405
