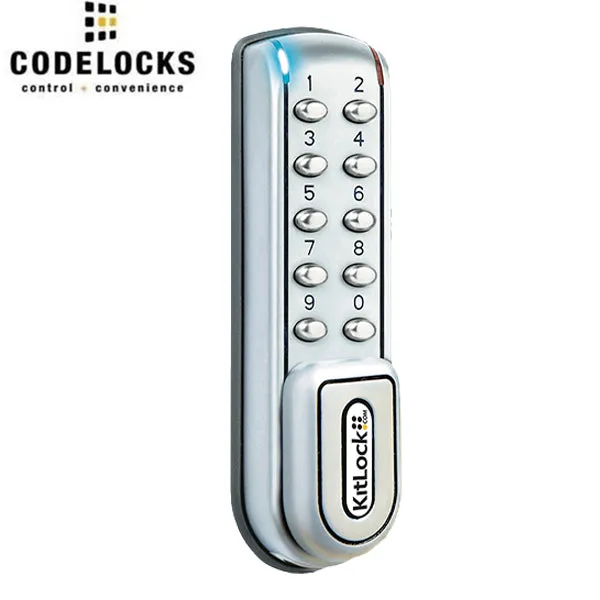

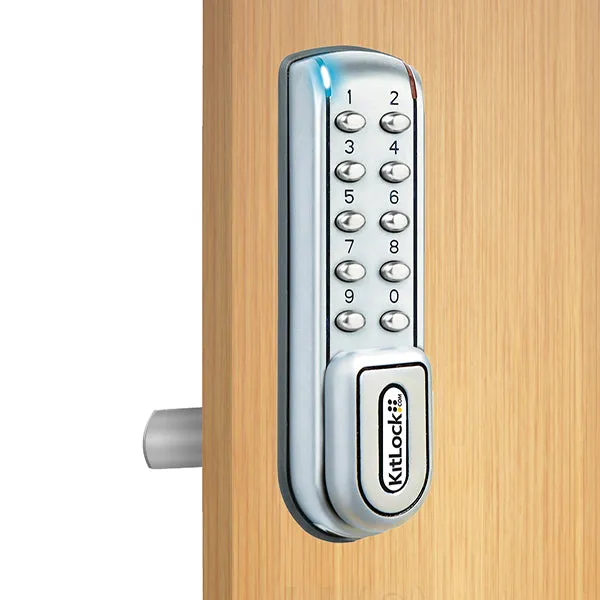

CDL-KL1200
The KitLock 1200 locker locks is a popular choice for more challenging environments. A tougher, more robust lock range with all the benefits of the KL1000 Classic plus additional features and functions.
The locks are easy to fit, providing additional programming features, stainless steel buttons, dual fixing points and improved number of operations from two AAA cells.
Now available in a right hand model and with the option of a slam latch accessory. Simplify access control and go keyless with KitLock.
The KL1200 is supplied as standard with two cams, but will accept the majority of other cam variations that will fit onto the KL1200’s 8mm square spindle. The lock is supplied with all the necessary fixings, template and operating instructions to fit the lock to the cabinet, locker or cupboard.
Features:
- Easy fit
- 11 individual stainless steel buttons
- 50,000 openings from 2 x AAA cells (supplied)
- 2 independent fixing points
- Auto unlock facility
- Audible key pad
- Ideal for cabinets, lockers, cupboards, medical carts, data racks, gun boxes, safes

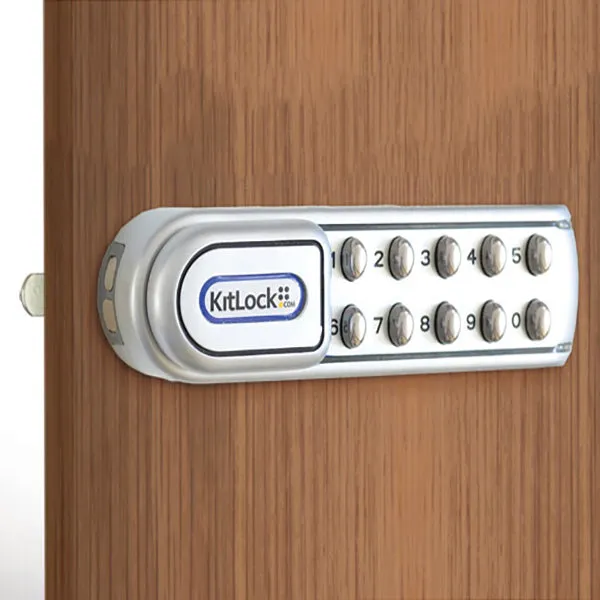

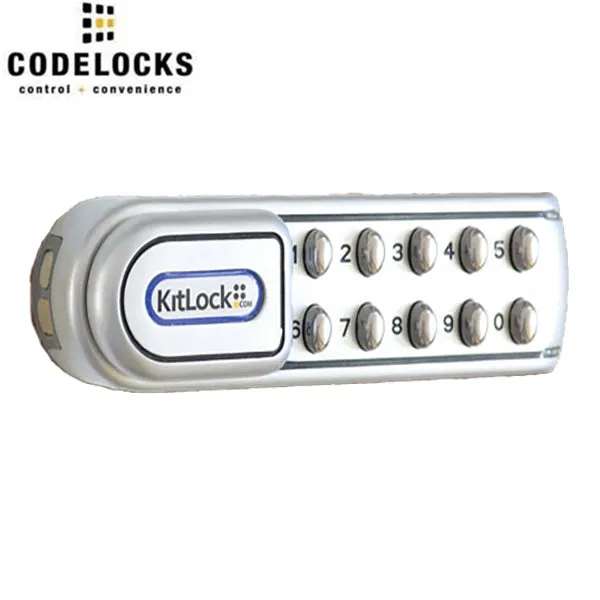

- Vertical and right-hand models available
- Available in silver grey finish.
- RAL color locks available on request, minimum order quantities apply.
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- IP54 rated when used with door gasket
The KL1200 has 4 code levels available:
8 digit Master Code
8 digit Sub-Master Code
4 digit User Code
6 digit Technician Code
Functions:
Private Use
This is the most common function and used where the same code will be repeatedly used, e.g. a pupil in a school or an employee with the same locker in the workplace.
Public Use
In this function the KitLock operates with a single User Code. The guest enters a personal four-digit code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next user. This function is used for short term, multi occupancy applications, e.g. a locker in a leisure centre.
Specifications:
| Brand |
KitLock by Codelocks |
| Battery Override | A 9 volt PP3 battery can be placed against external contacts |
| Code Change Method | Keypad (On Door) |
| Buttons | 2 x 5 Programming |
| Door Thickness |
Ready to fit doors up to 1/4" |
| Finish |
Silver |
| Functions |
Private, Public |
| Keypad | 11 individual round buttons |
| Lock Dimensions | 143mm (H) x 41mm (W) x 37mm (D) |
| Low Battery | Red LED will flash on opening to indicate low battery |
| Latch Type |
Cam |
| Memory |
Non-volatile memory will be retained |
| Operations |
Up to 50,000 opening per 2 x 1.5 AAA batteries |
| Power | 2x AAA |
| Orientation |
Vertical, Right Handed |
| Suitable For |
Internal, External |
| User Levels |
Master, Sub Master, Technician, Standard User |
| User Types |
Code |
